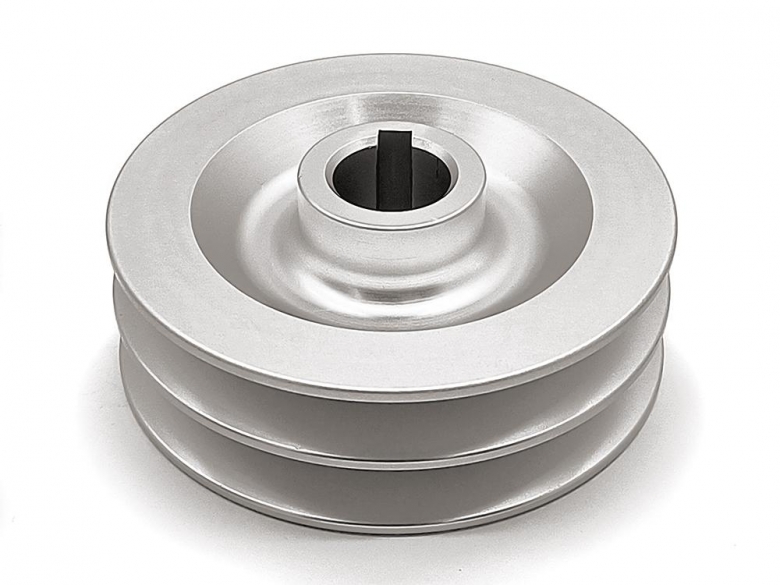

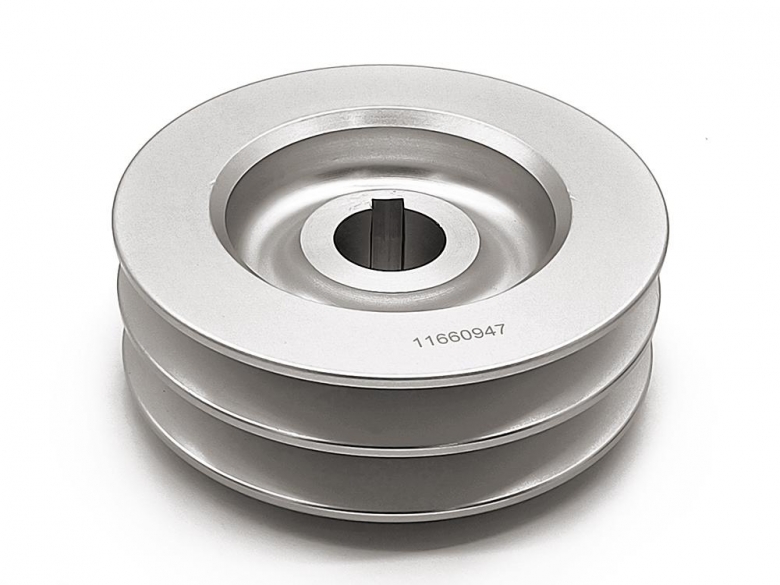

產品介紹 Description
| OUTSIDE DIAMETER | 4.280 INCHES NOMINAL | OVERALL LENGTH |
1.531 INCHES NOMINAL |
| PITCH DIAMETER | 3.798 INCHES NOMINAL | FACE WIDTH | 1.440 INCHES NOMINAL |
| GROOVE DEPTH | 0.740 INCHES NOMINAL | GROOVE WIDTH | 0.620 INCHES NOMINAL |
| V GROOVE ANGLE IN DEG | 36.0 | BORE TYPE | STRAIGHT |
| BORE DIAMETER | 0.876 INCHES MINIMUM AND 0.878 INCHES MAXIMUM | BORE LENGTH | BORE LENGTH |
| KEYWAY WIDTH | 0.252 INCHES NOMINAL | DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY | 0.439 INCHES NOMINAL |
| 圖片為實際產品，可能存在輕微的顏色和尺寸差異。發貨時請以實物為準。 謝謝。 Images are of actual products, with possible slight color and size variations. Please refer to the actual product upon delivery. Thank you. |
||||
